FISCON Basic for Volkswagen
Even without a navigation system, you don't need to miss the comfortable features
of a FISCON Bluetooth handsfree. The call lists, the phonebook and incomming
calls are shown on the MFA screen in the tacho. The menus
on the MFA screen can be controlled with the buttons of
the multifunction steering wheel.
With a FISCON Bluetooth handsfree for Volkswagen, your car
allows for these functions:
| Vehicle Integration |
 |
Uses full size MFA display. |
|
Displays Data on the FIS-Screen. |
|
Menu-driven operation. |
|
Establish, accept and end calls. Mute, regulate volume and numerous setup
functions. Everything is operable with the existing buttons in the vehicle. |
|
Voice output through the vehicle speakers. With distinguished sound quality,
no installation of additional speakers is necessary. |
|
Operation via the buttons on the multifunction steering wheel (where available). |
|
Usage of the ring-tone of the cellphone*1 on the vehicle
speakers. |
|
Automatic usage of the languages English, German, Spanish, French, Italian,
Dutch, Portuguese. A lot of other languages are partially supported. |
|
All original functions of the vehicle remain unaffected. |
| *1 |
If supported by the cellphone. |
| Phone Functions |
|
Synchronisation of the phonebook with names and numbers.*1 |
|
Access to call lists, including dialed and missed connections.*1 |
|
Shows incomming calls automatically with name synchronisation of the phonebook*1.
Option to accept or decline a Call. |
|
Up to 5 cellphones can be paired. |
|
Digital sound processor with echo and noise depression. |
|
Adjustable microphone amplification (to 30db) to optimize voice quality. |
| *1 |
If data are supplied by the cellphone. |
| Infotainment |
|
Shows digital data of the car like speed, boost pressure*3,
fuel quantity, oil temperature, battery voltage, water temperature.*4 |
|
Read SMS and reply with pre-defined texts (when supported by the cellphone).
|
| A2DP
audiostream via Bluetooth, for playing music stored in the cellphone on the
vehicle sound system.*1 |
| AVRCP control of the music on the cellphone, using the buttons of the vehicle.*2 |
| *1 |
A2DP must be supported by the cellphone. |
| *2 |
A2DP and AVRCP must be supported by the cellphone.
|
| *3 |
Only if the car provides boost pressure data. That data are available
for all TDI engines.
Not for Golf MK5 GTI. |
| *4 |
The advanced board computer is not available
for cars with white MFA-Display. |
| Hardware, Installation, Maintenance |
|
Real Plug&Play. No coding of the vehicle required until modelyear
2010. Later cars sometimes require coding. |
|
Plug&Play Adapter included. |
|
Uncomplicated installation. No cutting of wires necessary. |
|
Removes easily with no damage to the vehicle. |
|
Option for software updates. |
|
Standby power consumption is under 0,1mA (<1,2) Watt at 12V. |
Compatibility
FISCON Basic handsfree kits for Volkswagen and Skoda are compatible with these
cars and radios:
| Model |
Radio / Navigation System |
|
VW Golf V |
|
VW Golf VI |
|
VW Jetta |
|
VW Scirocco |
|
VW Eos |
|
VW Caddy |
|
VW Touran |
|
VW Passat 3C |
|
VW Passat CC |
|
VW Tiguan |
|
VW Touareg GP (Facelift) |
| |
|
|
|
All factory-installed Volkswagen radios and navigation-systems*. |
|
After market radios with signals for mute und speech-in (NF+/NF-)
|
|
| * |
The operation and display of data on the RNS-510 and RCD-510
touchscreen is possible only with FISCON Plus.
Using a FISCON Basic handsfree in combination with that systems allows
for operation and display on the MFA screen only,
not the navigation system. |
The system requires a
dot-matrix MFAscreen with a format like shown on the pictures below.
The color can be red or white. Touareg requires a wide screen display as shown below.
Displays MFA Screen
The menu structure for cars with white display is the same and just in a different
color.

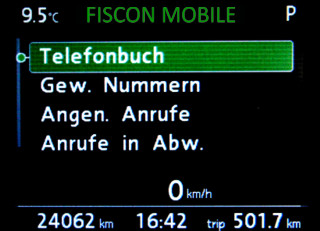

MFA+-Display (Touareg GP, Facelift)
|
