Identification of various Audi MMI Versions
Audi vehicles are available with various MMI systems. This overview helps you
identifying your MMI system.
| Audi A6, Q7 and A8 - MMI Basic 2G |
| Info |
The vehicle contains a red monochrome center screen. Speakers
are available in the front doors only. A navigation system is not
present.
|
| Technology |
Fiber Ring |
| Product |
FISCON Pro for MMI Basic |
|
|
| Audi A6, Q7 and A8 - MMI Basic Plus 2G |
| Info |
The vehicle contains a red monochrome center screen and a DSP
amplifier. Speakers a are available also in the rear doors. If a
CD navigation system is present it is located in the glovebox. The
MMI 2G was produced until end of modelyear 2008.
|
| Technology |
Fiber Ring |
| Product |
FISCON Pro for MMI Basic |
|
|
| Audi A6, Q7 and A8 - MMI High 2G |
| Info |
The vehicle contains a color center screen. If a DVD navigation
system is present it is located in the trunk. The MMI 2G was produced
until end of modelyear 2008.
|
| Technology |
Fiber Ring |
| Product |
FISCON Pro for MMI High |
|
 |
| Audi A6, Q7 and A8 - MMI 3G |
| Info |
The vehicle contains a color center screen. The headunit is located
in the glovebox. If a navigation system is present it is integrated
into the headunit. The MMI 3G was produced from modelyear 2009.
|
| Technology |
Fiber Ring |
| Product |
Not possible |
|
 |
| Audi A4 (8K), A5 and Q5 - MMI Basic with Radio
Chorus |
| Info |
The vehicle contains a red monochrome center screen and no navigation
system. The MMI wheel is located at the radio.
|
| Technology |
CAN-Bus |
| Product |
Not possible |
|
|
| Audi A4 (8K), A5 and Q5 - MMI Basic with Radio
Concert and Symphony |
| Info |
The vehicle contains a color center screen and no navigation system.
The MMI wheel is located at the radio. |
| Technology |
CAN-Bus |
| Product |
FISCON Plus |
|
 |
| Audi A4 (8K), A5 and Q5 - MMI Basic Plus 2G |
| Info |
The vehicle contains a red monochrome center screen. A CD navigation
system is installed in the glovebox. The MMI wheel is located beside
the gear knob. The MMI 2G was produced until end of modelyear 2008.
|
| Technology |
Fiber Ring |
| Product |
FISCON Pro for MMI Basic |
|
 |
| Audi A4 (8K), A5 and Q5 - MMI High 2G |
| Info |
The vehicle contains a color center screen. A DVD navigation
system is located in the trunk. The MMI wheel is located beside
the gear knob. The MMI 2G was produced until end of modelyear 2008.
|
| Technology |
Fiber Ring |
| Product |
FISCON Pro for MMI High |
|
 |
| Audi A4 (8K), A5 and Q5 - MMI Multimedia 3G |
| Info |
The vehicle contains a color center screen and a reverse camera.
A navigation system is not present. The headunit is located in the
dash . The MMI wheel is located beside the gear knob. The MMI 3G
was produced from modelyear 2009.
|
| Technology |
Fiber Ring |
| Product |
Not possible |
|
|
| Audi A4 (8K), A5 and Q5 - MMI Navigation 3G |
| Info |
The vehicle contains a color center screen. The navigation system
is located in the dash inside the MMI headunit. The MMI wheel with
integrated joystick is located beside the gear knob. The MMI 3G
was produced from modelyear 2009.
|
| Technology |
Fiber Ring |
| Product |
Not possible |
|
|
Identification of the Audi MMI software version

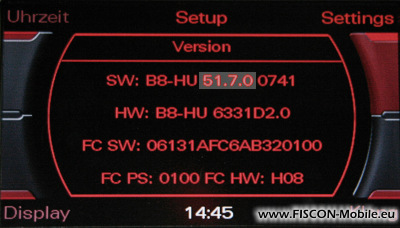

To find out your current MMI High 2G update level enter these menu topics:
RADIO > SETUP > SETTINGS > VERSION
This vehicle contains a MMI software level of 5170.
To find out your current MMI Basic 2G update level hold the
buttons SETUP and RETURN for at least 3 seconds. The value of the update level
stands in the row "SW Rel:" in the last 4 digits, e.g. 0420.
|
