Pictures

Uses the center Display.
Operation from the
MMI Panel...
... and the
Multifunction Steering Wheel
With Fiber Optic Interface
Compact Housing

Purchase now

You can buy your FISCON Bluetooth handsfree directly from us.

Use our comprehensive Service offers which are available for all customers who bought directly at our shop.

Price:
399.00€ incl. 19% tax
335.29€ excl. 19% tax
Customers outside European Union don´t need to pay German tax.

FISCON Pro for Audi MMI 2G Basic

Description of Functionality
Car Compatibility
Recommended Accessory
Pictures

Description of Functionality

With a FISCON Pro Bluetooth handsfree, your Audi with infotainment systems MMI 2G Basic or Basic-Plus MMI allows for these functions:

Vehicle Integration
	Full integration into the infotainment system with MMI logic.*2
	Displays Data on the FIS-Screen.
	Menu-driven operation

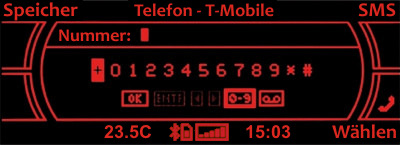

	Establish, accept and end calls. Mute, regulate volume and numerous setup functions. Everything is operable with the existing buttons of the vehicle
	Voice output through the vehicle speakers. With distinguished sound quality, no installation of additional speakers is necessary.
	Uses the amplifier of the car for speech and music. OEM soundsystems are supported.
	Operation via the buttons on the multifunction steering wheel (where available).
	Usage of the ring-tone of the cellphone*1 on the vehicle speakers.
	All original functions of the vehicle remain unaffected.
	Mikrophone housing is fitting exactly to the original position in the dome light.
	Completely invisible installation.

If supported by the cellphone.

On the vehicles Audi A6 (4F) and Q7 the access to the phone section through the car buttons on the center monochrome display is only possible if a PHONE button at the MMI panel is present. Without this button you can switch to the phone section of the MMI by pressing a combination of keys on the phone. At incomming calls the car switches automatically to the phone section. The functionality at the FIS display works independend of the MMI Phone button and is always available.

Phone Functions
	Synchronisation of the phonebook with names and numbers.*1

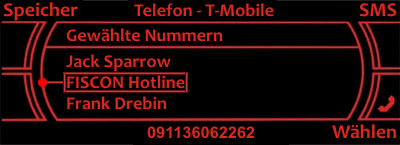

	Access to call lists, including dialed, accepted and missed connections.*1
	Shows incomming calls automatically with name synchronisation of the phonebook*1. Option to accept or decline a Call.
	Up to 5 cellphones can be paired.
	Digital sound processor with echo and noise depression.
	Adjustable microphone amplification to optimize voice quality.

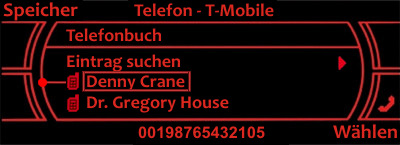

	Alphabetic search for phonebook records.

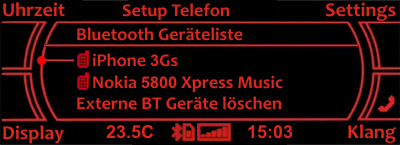

	Paired phones can be chosen, changed or removed from the MMI system.
	Fully digital transmission of the voice between the cellphone and the amplifier of the vehicle. Outstanding quality also for the voice of the other person.
	Display of the phone provider and signal strength.*1
	Second call possible while first call is on hold.
	Mailbox recallable from the MMI infotainment system.
	DTMF tones allows to select computer guided services.

*1	If data are supplied by the cellphone.

Infotainment

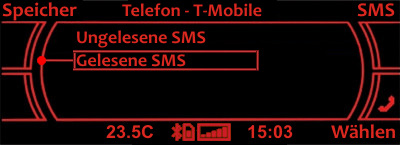

	SMS can be displayed on the MMI screen.*1

*1	If data are supplied by the cellphone.

Hardware, Installation, Maintenance
	High quality harness, wrapped around with textile tape.
	Plug&Play Adapter based on fiber optics.
	Easy electric installation. Just connect adapter and power supply.
	Removes easily with no damage to the vehicle.
	Option for software updates.
	Updates for phone compatibility can be installed via bluetooth with a Windows Notebook or Android Device.
	Standby power consumption is under 0,1mA (<0,0012W) Watt at 12V.

Car Compatibility

FISCON is suitable for these cars with MMI Basic 2G or MMI Basic-Plus 2G:

Supported Cars
	Audi A4 (8K)
	Audi A5
	Audi A6 (4F)
	Audi Q7

The system is not suitable for the current MMI 3G infotainment system. The MMI 3G is available since about modelyear 2009.

Which MMI system do I have?

Below MMI Basic software version 0410 (A6 and Q7 only) a MMI update is required. Audi A4 (8K) and A5 always have the required level from factory so no update is necessary there. MMI update CDs are available at our shop.

Which MMI Software do I have?

At cars with factory installed handsfree it is required to disable the old system with a fiber ring loop. It is available in our shop.

Recommended Accessory

With these products you can ease the installation:

Radio Removal Tool, 2pcs. Required to take the the CD-radio out of the slot.
Cable Installation Guide Install the microphone cable behind panels without removing them.
Trim Removal Tools Useful tools for disassembly of parts without damages.
Cable Fixers, A4 (8K) / A5 For save installation of the microphone cable along the A-pillar.
Cable Fixers, A6 (4F) For save installation of the microphone cable along the A-pillar.
Update-CD A6, MMI 2G Basic Only required for MMI firmware level below 0410.
Update-CD Q7, MMI 2G Basic Only required for MMI firmware level below 0410.
Fiber Ring Loop Only required if a handsfree from factory has to be replaced.
